Calcium Sulphate Raised Floor
Description:

Panel- Calcium Sulphate Core in the middle, top HPL / PVC laminates, bottom with galvanized steel sheet or aluminum foil, PVC/ABS around 4 edges of the panel Accessories - Flat steel head Pedestal,90mm diameter head, 100mm base plate, Finish height: 150mm~1500mm, 25mm height adjustment, Galvanized coating, Galvanized bolt-on stringer, size: 21*30*535mm, 1.0mm / 1.2mm / 1.5mm thickness

  • Description
  • Character
  • Specification
  • Application

Panel- Calcium Sulphate Core in the middle, top HPL / PVC laminates, bottom with galvanized steel sheet or aluminum foil,
PVC/ABS around 4 edges of the panel

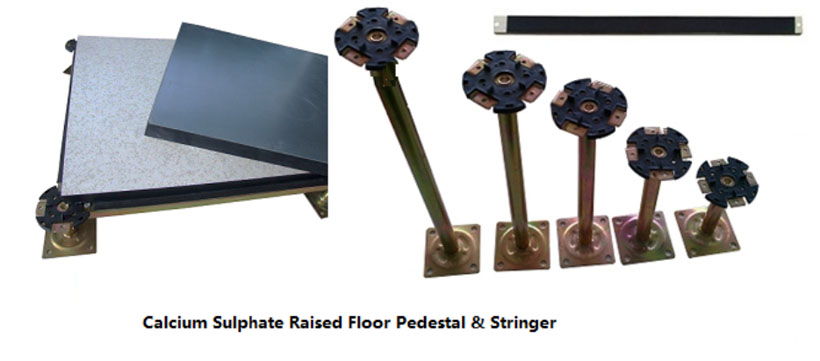

Accessories - Flat steel head Pedestal,90mm diameter head, 100mm base plate, Finish height: 150mm~1500mm, 25mm height adjustment, Galvanized coating, Galvanized bolt-on stringer, size: 21*30*535mm, 1.0mm / 1.2mm / 1.5mm thickness



1)Environment friendly calcium sulphate board
2)Anti-static, high dimensional precision, strong loading ability and shockproof fireproof
3)Adjustable height for pedestal, assembly agility, large wire, good exchangeability
4)Outlet mating, elegant appearance for paving widely brand top ties. Being stable performance in humidity & temperature.



Type Size
(mm)
Fire Performance Concentrated Load Impact Load Ultimate Load Uniform Load Rolling Load
(N)
IB N Kg N N N/m2
10
Times
104
Times
FS800 600×600×30 A ≥ 800 ≥ 3550 ≥ 363 ≥ 536 ≥ 11250 ≥ 16100 3560 3670
FS1000   A ≥ 1000 ≥ 4550 ≥ 450 ≥ 670 ≥ 13350 ≥ 23000 4450 3560
FS1250   A ≥ 1250 ≥ 5560 ≥ 567 ≥ 780 ≥ 16680 ≥ 33000 5560 4450
FS1500   A ≥ 1500 ≥ 6675 ≥ 670 ≥ 1005 ≥ 19892 ≥ 34500 6670 5340

The calcium sulphate raised floor is widely used in IT rooms & switch centers, Control stations, telecom rooms and TV studios, Power stations & industrial rooms, General office spaces, School & shopping centers, Banking & insurance office, etc
