Raised Floor Finishes
Description:

About anti-static raised floor laminates, we usually use High Pressure Melamine Laminate (HPL) and Conductive Vinyl PVC tiles. HPL is anti-static , anti-wear and free of poluttion.But it is easily cracked in the cold enviorment.So the product (Permanent Anti-static PVC Tile) can be better. It uses conductive static network formed at the interface of plastic particles. Its appearance looks like the pattern of marble. It has good decoration effect and it is widely used for program machine room,data center of electrical power, cleaning and purification workshop of telecommunication, electic power, electronics, micro-electronics and medcine industries and other places where it is necessary to be protected from electrostatic discharge.

  • Description
  • TB50 Series
  • TAB5 Series
  • TB3-1 Series

About anti-static raised floor laminates, we usually use High Pressure Melamine Laminate (HPL) and Conductive Vinyl PVC tiles. HPL is anti-static , anti-wear and free of poluttion.But it is easily cracked in the cold enviorment.So the product (Permanent Anti-static PVC Tile) can be better. It uses conductive static network formed at the interface of plastic particles. Its appearance looks like the pattern of marble. It has good decoration effect and it is widely used for program machine room,data center of electrical power, cleaning and purification workshop of telecommunication, electic power, electronics, micro-electronics and medcine industries and other places where it is necessary to be protected from electrostatic discharge.

HPL Specification:

Properties Nema Test Method Nema Test Standard Laminate Results
Electrical Resistance NFPA99   1.0X10^6-2.0X10^10
Stain Resistance 3.4 No effect No effect
Boiling Water Resistance 3.5 No effect No effect
High Temperature Resistance 3.6 Slight effect No effect
Wear Resistance 3.13 3000 cycles/min 3000+
Scuff Resistance 3.16 No effect No effect

PVC Specification:

Size:600x600mm、900x900mm

Thickness:2.0mm、2.5mm、3.0mm、4.5mm

Item System Resistance Decay Time Rate of size change
at  heating
Starting Voltage Amount of wear Combustion Property
Standard DIN51953 SJ/T10694-2006 SJ/T11236-2001 SJ/T10694-2006 SJ/T11236-2001 SF/T11236-2001
Index 104~106Ω
(Conductive)
106~108Ω
(Anti-static)
1000V-100V
≤2s
≤0.25% ≤100V ≤0.02g/cm2 ≤10s
FV-O

Carpet tiles :

Nowadays, more and more campanies use carpet tiles instead of floor tiles as ground necessary decoration, for it is sound absorption, anti-skidding, comfortable, anti-fatigue and air purification. Huade office carpet tile is specially designed for office building places.

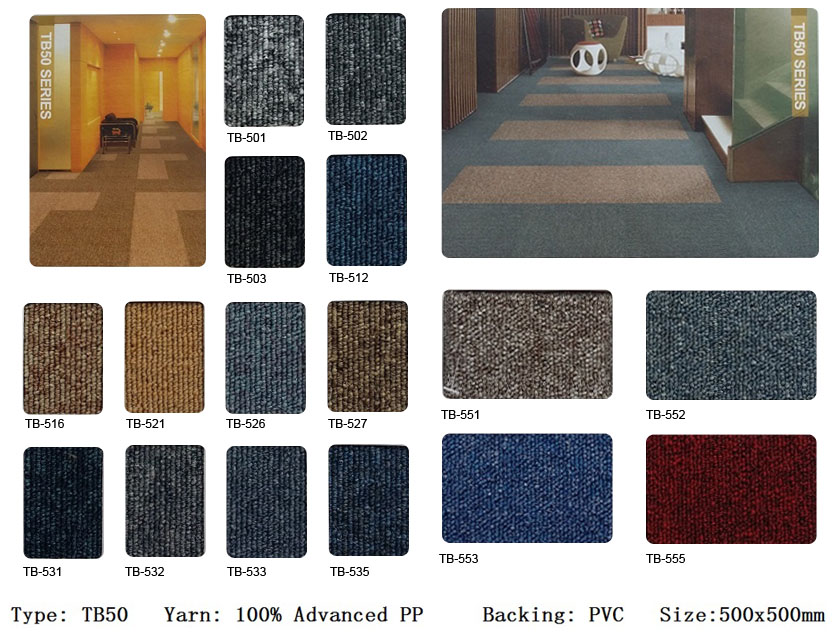

Type:TB50 Yarn:100% PP Backing:PVC Size:500*500mm

Raised Floor Finishes

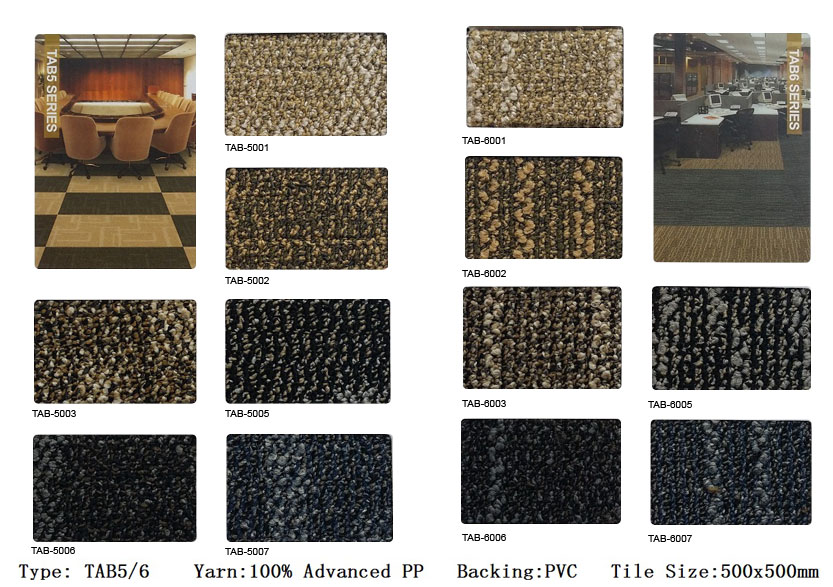

Type:TAB5/6 Yarn:100% Advanced PP Backing:PVC Tile Size:500*500mm

Raised Floor Finishes

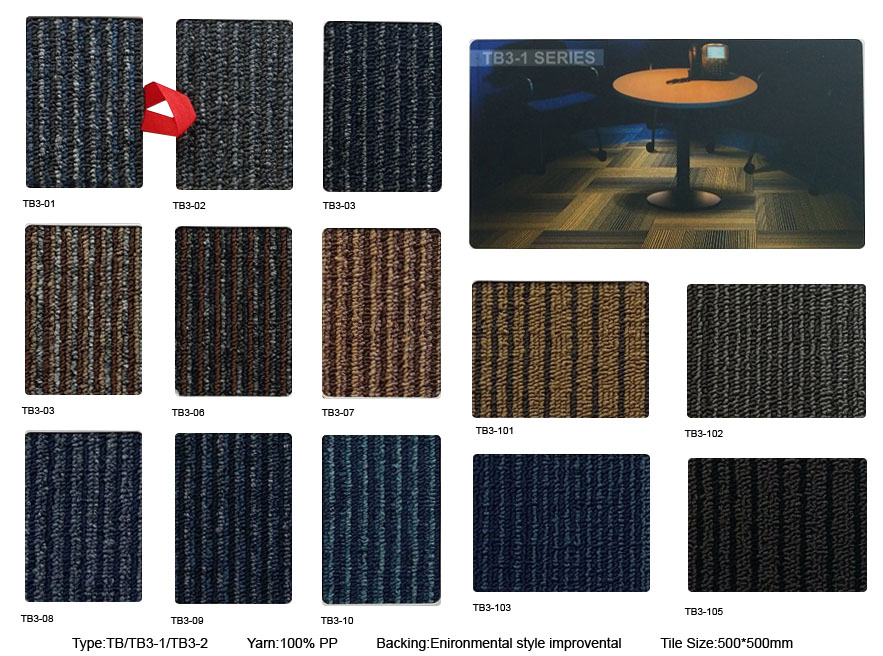

Type:TB/TB3-1/TB3-2 Yarn:100% PP Backing:Enironmental style improvental Tile Size:500*500mm

Raised Floor Finishes
