Steel Raised Floor for OA Intelligent Building Series
Description:

These kinds of raised floor with dimension 500x500x28mm or 600x600x35mm is made of good quality deep stretch coil steel, which is punched, spot-welded and coated by epoxy powder. The panel is filled with foamed cement inside .

  • Edge Turned-over Raised Floor
  • With Trunk
  • Bolted Stringer

Basic steel raised floor OA500 and OA600 for intelligent buildings.

These kinds of raised floor with dimension 500x500x28mm or 600x600x35mm is made of good quality deep stretch coil steel, which is punched, spot-welded and coated by epoxy powder. The panel is filled with foamed cement inside .

Feature:

1.Constituted by full steel sheet, good loading capacity, excellent fireproof
2.Less weight and less load to sub-floor
3.The panel surface is gentle glow, anti-wear and anticorrosion
4.Easy to install, disassembly and maintain
5.The surface can be installed with carpet tiles or wood tiles ,etc.

Specification:

Type Size
mm
Concentrated Load Rolling load
N
Ultimated load
N
Uniform load
N/㎡
Fire Protection Performance
N KG
FS700 500X500X28 ≧2950 ≧300 ≧2255 ≧8850 ≧12500 A
FS800 ≧3550 ≧360 ≧2950 ≧10650 ≧16500
FS1000 ≧4450 ≧450 ≧3560 ≧13350 ≧23000
FS700 600x600x35 ≧2950 ≧300 ≧2255 ≧8850 ≧12500 A
ASTM E84-01:
Flame Spread:0
Smoke Density: 0
FS800 ≧3550 ≧360 ≧2950 ≧10650 ≧16500
FS1000 ≧4450 ≧450 ≧3560 ≧13350 ≧23000
FS1250 ≧5560 ≧560 ≧4450 ≧16680 ≧33000

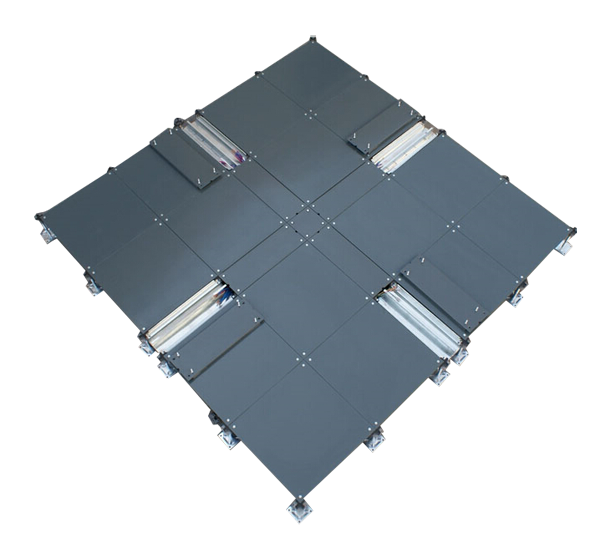

Type 01

Steel Raised Floor for OA Intelligent Building Series



OA500 and OA600 serial network floor with wiring casing adopts quality cold-rolled plate, formed by spot welding after tension. Its surface is sprayed with plastics after phosphate treatment. Intermal cavity is filled with expanded material. There are lock holes at four corners. Its advantage including below 5 cm of minimum height. Fixed wire slot can be put on the surface based on requirements. Wiring is flexible.

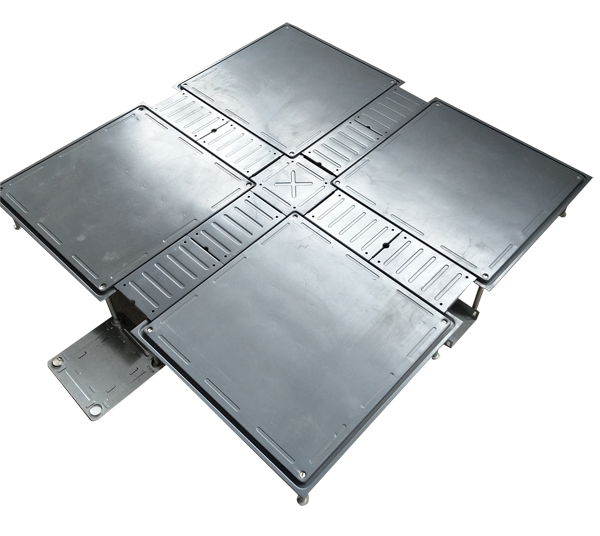

Type02

Steel Raised Floor for OA Intelligent Building Series



Main components: panel , blank cap, central cap and base connector
Optional accessories : electrical floor box, bottom trunk
The adjustment of the floor 35-150mm, the best height is 50mm, save the space of the room
A workstation can be easily and quickly relocated with cable management without disruption. Convenient for connecting wire at any point without cutting floor. Suitable for all kinds of plug socket terminals.

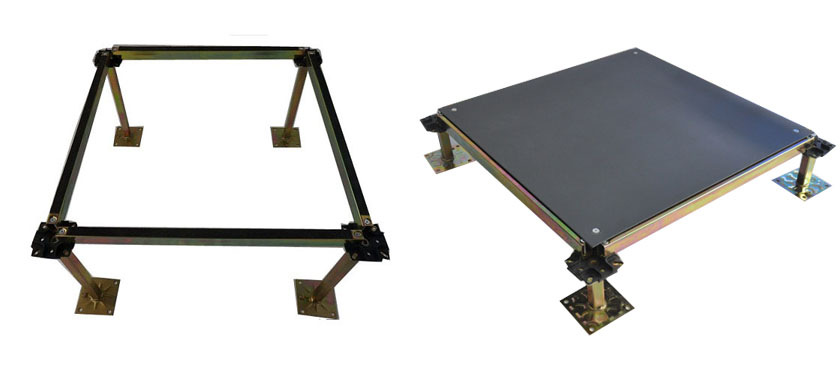

The system is consist of bare panel, stringer and pedestals. It is specially designed for 5A office building, flexible for installation in intelligence office rooms as requirements. Sound-proof and easy insllation. The surface can be installed with carpet tiles and PVC tiles,etc.
