Perforated Raised Floor
Description:

Full steel, HPL or PVC punched tile, surface punched panel which is SPCCID hard steel of Shanghai Bao steel, manual welding for the bottom square tube, origination domestic. Imported paint, conductive rim, pedestal,stringer are pressured forming with steel, lead screw could adjust height.

  • Description
  • Character
  • Application
  • Specification

Full steel, HPL or PVC punched tile, surface punched panel which is SPCCID hard steel of Shanghai Bao steel, manual welding for the bottom square tube, origination domestic. Imported paint, conductive rim, pedestal,stringer are pressured forming with steel, lead screw could adjust height.



1.Prevent static validly; fireproof, dustproof;
2.Manual welding, high mechanical strength, strong bearing capacity, good shock-resistance;
3.Except for other function, possess ventilation function;
4.17% ventilation rate, satisfies different environmental requirements on purge.



It is widely used for computer room, network service room monitor control center, electronic workshop、clean room, dauntlessness chamber etc and occasions which require on antistatic and air conditioning.

Type Size(mm) Airflow diameter
Φmm X holes
Rate Concentrated Load Ultimate Load
(N)
Uniform Load (N/㎡) Flatness
LB N KG

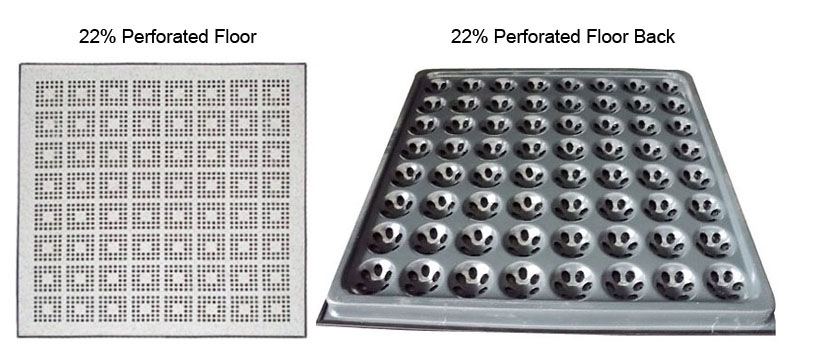

FS450 600×600×35 Φ8×1536 22% ≥450 ≥1960 ≥200 ≥5880 ≥9720 ≤ 0.6 mm
FS800 600×600×35 Φ16×576 32% ≥800 ≥3550 ≥360 ≥10700 ≥17000
Φ22×400 42%
FS1000 600×600×35 Φ10×918 20% ≥1000 ≥4450 ≥450 ≥13350 ≥23000

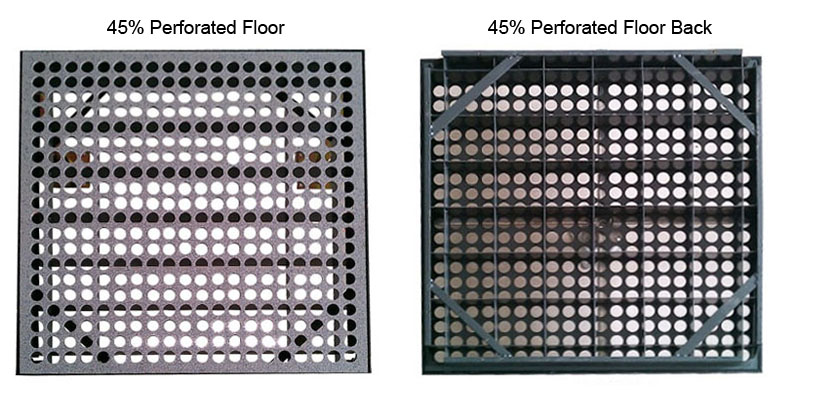

600x600x45 Φ(52×18)×128 45%
