Woodcore Raised Floor
Description:

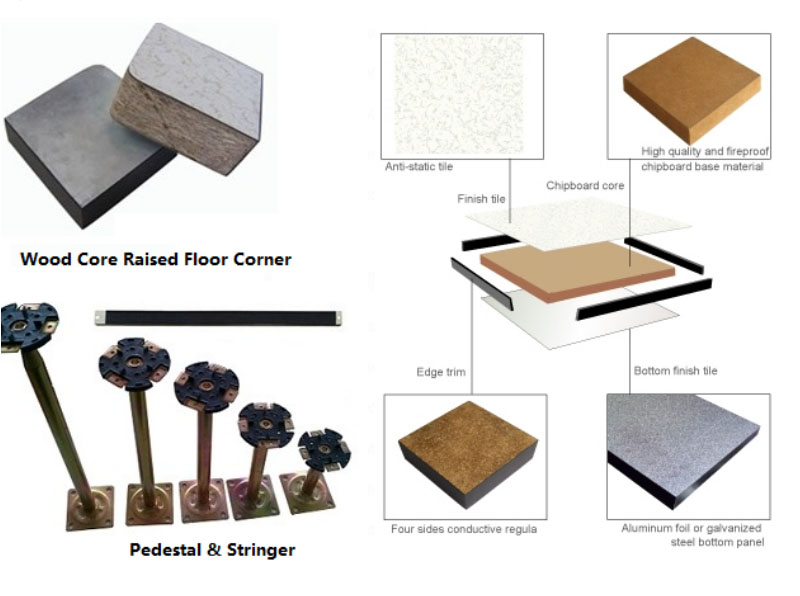

Panel- High density chipboard in the middle, top HPL/ PVC laminates, bottom with galvanized steel sheet or aluminum foil,PVC/ABS around 4 edges of the panel

Accessories -die casting steel structure pedestal, with gasket, the height is adjustable, can be from 70mm --1500mm , with square tube stringer steady connect the system

  • Description
  • Feature
  • Application
  • Specification

Panel- High density chipboard in the middle, top HPL/ PVC laminates, bottom with galvanized steel sheet or aluminum foil,PVC/ABS around 4 edges of the panel

Accessories -die casting steel structure pedestal, with gasket, the height is adjustable, can be from 70mm --1500mm , with square tube stringer steady connect the system



1.Prevent static validly, fireproof class B2,antiskid,soundproof,dustproof,anti-soil
2.Strong wearability, non-bubble, no-degumming
3.Strong design ability, pressurization
4.Beautiful appearance
5.Easy to fix, convenient for wires.



Fangsheng wood core raised floor is widely used in telecommunications, electronics, microelectronics, pharmaceutical and other industry program-control room, computer room, power station, factory clean room and other anti-static requiring places.

Type Size Concentrated Load Rolling Load Ultimate Load Uniform Load System
resistance
mm N KG N N N/M 2
FS800 600× 600× 30 ≥3550 ≥ 363 ≥536 ≥ 10650 ≥ 16500 Conductive: R< 10 6 Ω
Static dissipative:
10 6 -10 10 Ω
